Project support from A to Z

A detailed and comprehensive planning is the basis for successful new constructions as well as for the extension or revamping of switchgear systems and transformer stations during operation. With our long-term experience and expertise in this business field we provide you support during all project phases, from conceptional design till start-up and commissioning.

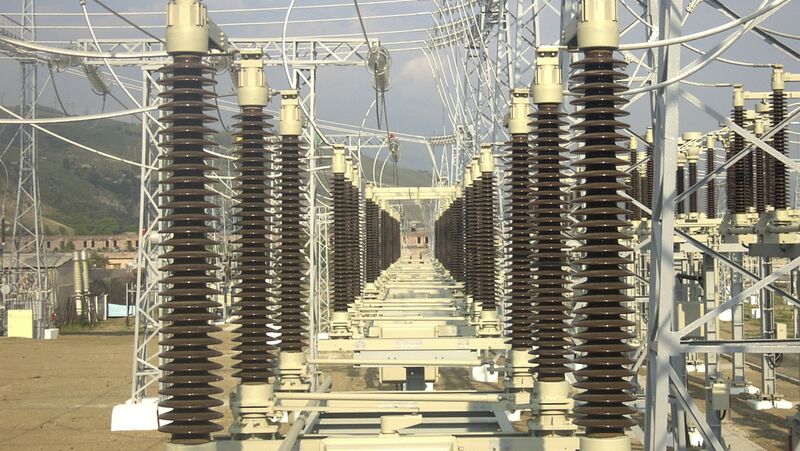

Engineering

Call for tender and award

Site Supervision and Documentation

CENTRAL JUNCTIONS FOR
MEDIUM, HIGH AND MAXIMUM VOLTAGES

HIGH AND MAXIMUM VOLTAGE

Plants for
power transmission and distribution upto 750 kV

MEDIUM VOLTAGE

Switchgear systems
for industry and public suppliers

ENGINEERING

Planning of air and gas-insulated switchgear systems according to the state-of-the-art.

New and reconstruction planning at uninterrupted operation
Determination of space and power requirement
Plant disposition and installation of transformers
Design protection and control systems
Network structure, grounding and ligtning protection concepts
CAD drafting
Compliance with EMC guidelines

CALL FOR TENDER AND AWARD

We provide you support in the preparation and execution of award with legal certainty.

Workout bill of quantities and specifications
Compile call for tender documents
Development and realisation of prequalifications and bidder lists
Execute technical discussions for clarification
Support in negotiation meeting and contract drafting
Redact bidder enquiries
Check technical and commercial offers, valuation report and award recommendation
